PET Bottle Manufacturing Solutions
OverviewofPETBottleManufacturingSolutions
Count the pet plastic bottles in your own kitchen and you'll probably lose track. Water, oil, sauces, shampoo this format won because it's light, doesn't shatter, and ships cheap. That's why so many entrepreneurs are eyeing this industry right now.
Key Benefits
- Scalability: Start with a two cavity linear machine, add capacity later.
- Design versatility: Produce pet plastic bottles from 100ml sample sizes up to 5L jerry cans.
- Recycled content processing: Modern machines run preforms made from up to 100% rPET.
- Lower cost per unit over time: Light weighting thinner walls without losing strength cuts resin cost.
Seppa Solutions builds the machinery behind that supply of pet plastic bottles: blowing systems, mold sets, compressors, chillers, specified as one package rather than sold piecemeal. Buy from three vendors and you'll spend half a year just getting the equipment to talk to itself. Our clients skip that.
Whether you're a first time plastic bottle maker sizing up your first line, or a plastic bottle factory adding a second shift's worth of capacity, the machine you pick locks in your margins for a decade. Cycle time, energy draw, bottle weight none of that gets fixed later on the shop floor. Skimp on any of it and the extra cost shows up later, buried inside a pet bottle manufacturing plant cost you thought you'd already paid off.
TypesofPETBlowingMachinesandApplications
Two architectures dominate: linear and rotary. The choice comes down to volume, not taste.
Linear Systems
Linear machines run one or two cavities per cycle, suited to output under roughly 6,000 pet plastic bottles per hour. Th...
Rotary Systems
Rotary machines arrange preform stations around a wheel so heating, stretching, and blowing happen at once instead of on...
KeyFeaturesandPerformanceBenefitsofPETSystems
Producing pet plastic bottles at scale comes down to cost per bottle, and four engineering choices decide that number.
Precision thermal conditioning
Preforms need even heat before stretching or you get thin walls and weak spots. Our ovens use zoned infrared lamps with...
Servo driven stretching
Old pneumatic stretch rods hit a fixed position no matter what. Servo rods adjust speed and position on the fly, cutting...
Multi cavity synchronization
On a rotary machine, every cavity has to clamp, blow, and eject in lockstep. A few milliseconds of drift shows up as dim...
Energy optimized pneumatics
Compressed air is usually the biggest utility line item in a bottle plant. Our systems recover low pressure air from the...
WhyChooseSeppaSolutionsforPETMachinery
We've installed PET blowing equipment for everyone from single line startups to multi plant beverage groups a plastic bottle factory running one line needs different support than one running twelve.
For a plastic bottle maker still comparing suppliers, mold life data and reference calls tell you more than any brochure.
PETBottleManufacturingMethodology
Making pet plastic bottles follows a fixed sequence, and knowing each stage helps you judge machine quality before you buy.

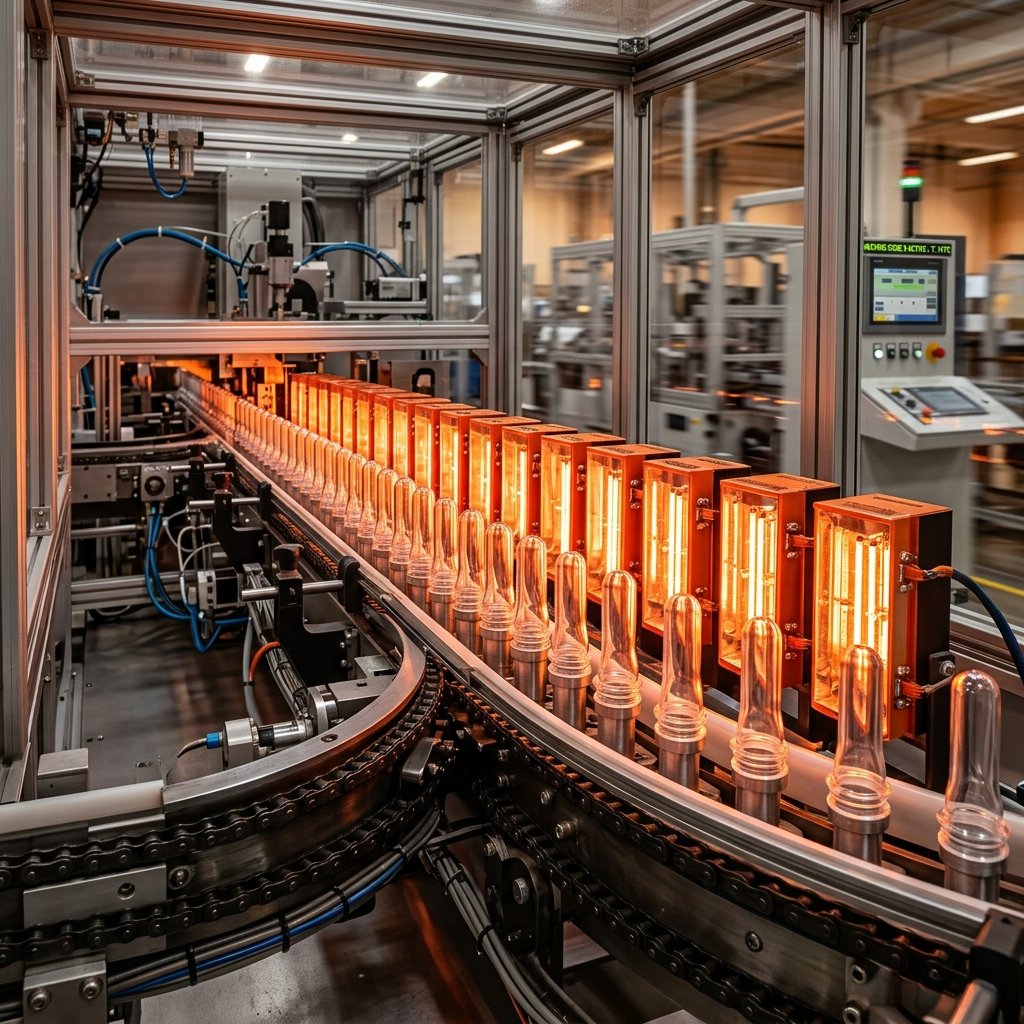

Preform thermal treatment
Infrared lamps bring preforms to stretch temperature, typically 95–105°C depending on resin grade.
Mold clamping kinetics
The heated preform enters the mold cavity and clamps shut with enough force to hold against the air pressure coming next, without leaving flash lines.

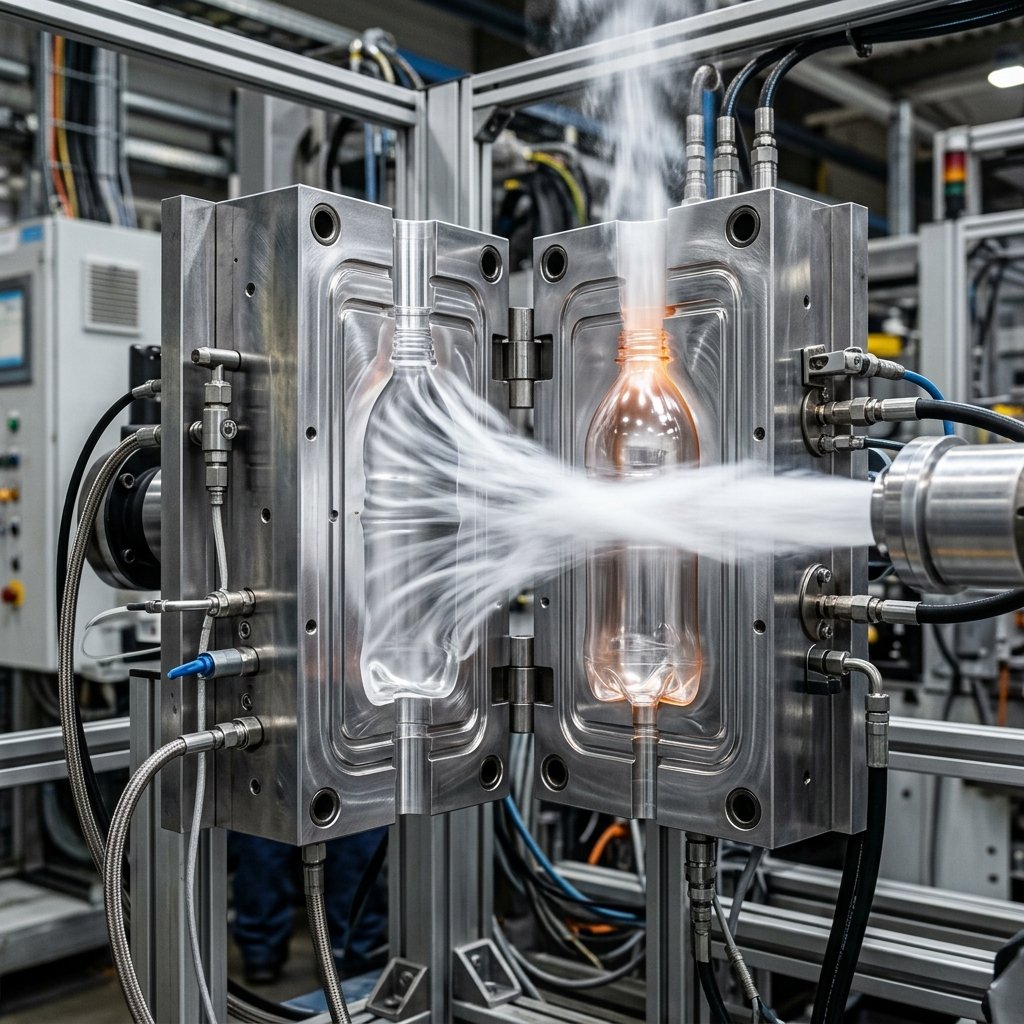

High pressure air injection
A low pressure pre blow shapes the preform, then a final blow at 30–40 bar pushes plastic into every mold contour, base detail included.

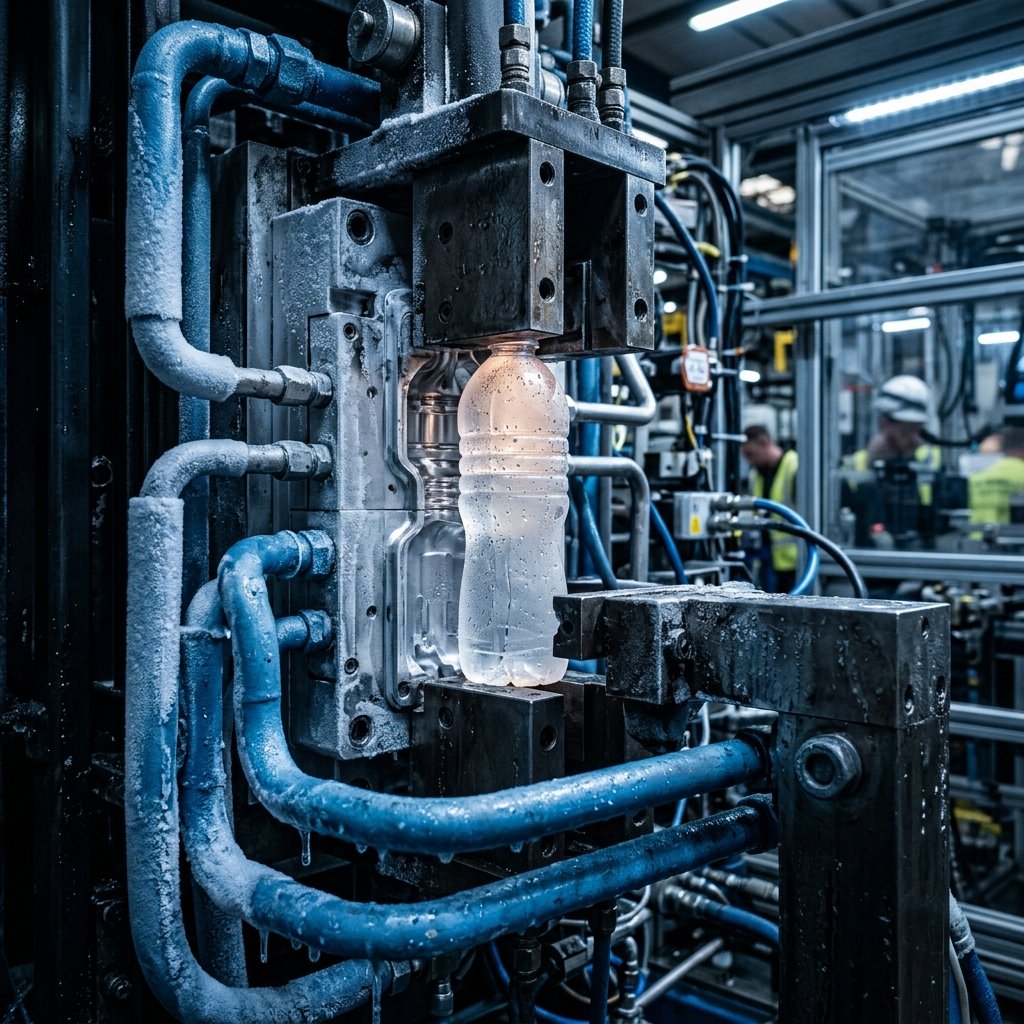

Structural cooling
Chilled water in the mold pulls heat out fast enough that the bottle holds its shape on ejection. Get cooling time wrong and you either eject deformed pet plastic bottles or waste seconds per cycle that add up across a shift.

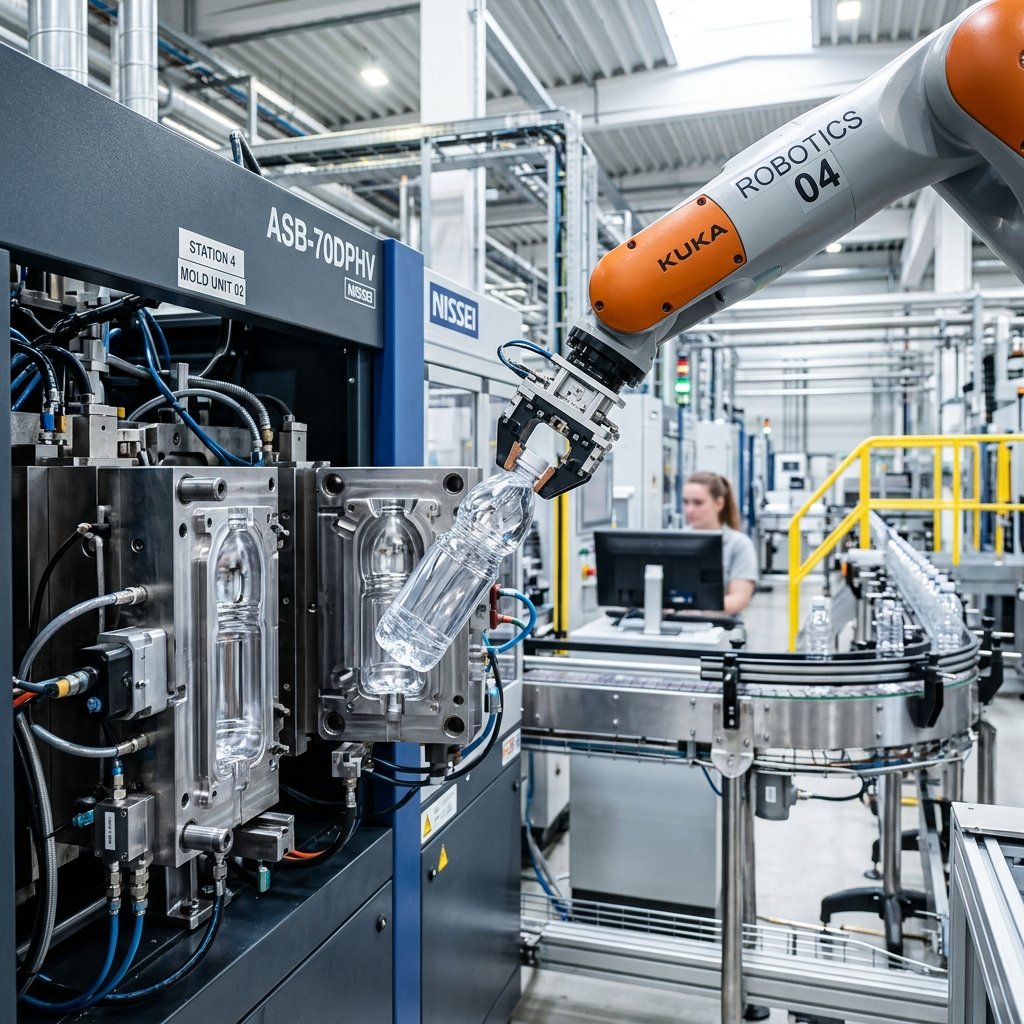

Automated extraction
Robotic arms pull the finished pet plastic bottles straight to labeling or filling, no manual handling needed.
Miss a step undertreated preforms, mistimed clamping, weak air pressure and it shows up as a defect: warping, thin spots, stress cracking under load. Getting this pet bottle manufacturing plant cost right on paper means nothing if the process itself is loose.
FrequentlyAskedQuestions
